Ring and Field Calculator

About Ring and Field Calculator

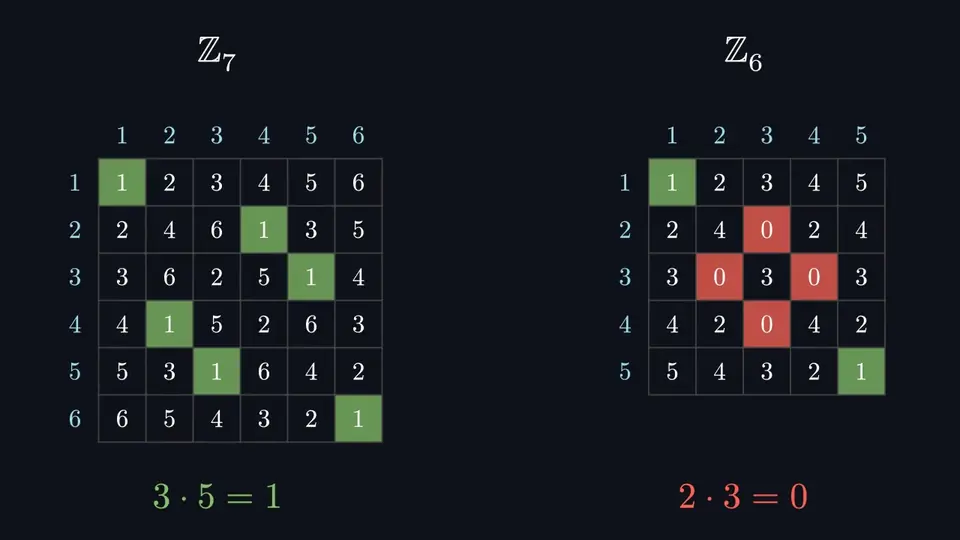

The Ring and Field Calculator performs exact arithmetic inside the two most important families of finite algebraic structures: the modular rings Z_n and the Galois finite fields GF(p^k). It handles addition, subtraction, multiplication, division, powers, multiplicative inverses, and element order, and it enriches every result with a structural analysis — units, zero divisors, nilpotents, idempotents, primitive roots, and full colour-coded Cayley tables.

Z_n — The Modular Ring

For a positive integer n, the ring Z_n = {0, 1, 2, …, n − 1} carries addition and multiplication reduced modulo n. An element a is a unit of Z_n (i.e. has a multiplicative inverse) if and only if gcd(a, n) = 1, so the multiplicative group Z_n* has order φ(n), Euler's totient function.

When n is composite, elements a with gcd(a, n) > 1 are zero divisors: there exists b ≠ 0 such that a · b ≡ 0 (mod n). The calculator auto-classifies every element into its structural role.

Finding Inverses — Extended Euclidean Algorithm

If gcd(a, n) = 1 the extended Euclidean algorithm produces integers x, y with a · x + n · y = 1, from which a⁻¹ ≡ x (mod n). The tool shows the resulting Bézout identity whenever you request an inverse.

Multiplicative Order

For a unit a, the multiplicative order ord(a) is the least k ≥ 1 with a^k ≡ 1 (mod n). By Lagrange's theorem ord(a) divides φ(n). An element with ord(a) = φ(n) is called a primitive root and generates the entire unit group. A primitive root exists precisely when n is one of 1, 2, 4, p^k, or 2p^k for an odd prime p.

GF(p^k) — Finite (Galois) Fields

For every prime p and positive integer k there is a unique field (up to isomorphism) with p^k elements: the Galois field GF(p^k) = 𝔽_p^k. Its elements are represented as polynomials of degree < k with coefficients in GF(p) = Z_p, and arithmetic is done modulo an irreducible polynomial f(x) of degree k.

The calculator suggests a standard irreducible polynomial for common pairs (p, k), for example x² + x + 1 for GF(4), x³ + x + 1 for GF(8), x⁴ + x + 1 for GF(16), and x² + 1 for GF(9). You may override it with your own; the tool verifies irreducibility via a Rabin-style gcd test.

Why Must f(x) Be Irreducible?

If f(x) factored as g(x)·h(x) with deg g, deg h ≥ 1, then the image of g(x) and h(x) in the quotient would be non-zero zero divisors — the quotient would only be a ring, not a field. Irreducibility is exactly the condition for GF(p)[x] / ⟨f(x)⟩ to be a field.

Polynomial Arithmetic and Inverses

Addition is coefficient-wise mod p. Multiplication is ordinary polynomial multiplication followed by reduction: given a(x)·b(x), divide by f(x) and keep the remainder r(x), with deg r < k. Multiplicative inverses come from the extended Euclidean algorithm over the polynomial ring GF(p)[x]: find u(x) and v(x) with u(x)·a(x) + v(x)·f(x) = 1.

Rings vs Fields at a Glance

How to Use the Calculator

1. Choose a structure — Z_n for modular integers, or GF(p^k) for an extension field. The form rearranges to show only the relevant fields.
2. Enter the parameters — the modulus n, or the prime p and degree k. For GF(p^k) you may leave the irreducible polynomial blank and the calculator will fill in a standard one.
3. Pick an operation — the seven choices cover all common tasks: add, subtract, multiply, divide, raise to a power, compute an inverse, or find the multiplicative order.
4. Provide the operands — integers for Z_n, or polynomials like x^2 + x + 1 for GF(p^k). Coefficient-list form (1,1,1) also works.
5. Click Compute. You'll see the result alongside step-by-step working, the classification of every element, and Cayley tables whenever the structure is small enough to display.

Worked Example — GF(8) = GF(2³)

Take f(x) = x³ + x + 1 (irreducible over GF(2)). Multiply a(x) = x + 1 by b(x) = x²:

The multiplicative group GF(8)* is cyclic of order 7, and the element x is a primitive element because x^k runs through every non-zero element as k = 1, 2, …, 7.

Why This Matters

• Cryptography — AES uses arithmetic in GF(2⁸) with f(x) = x⁸ + x⁴ + x³ + x + 1. Elliptic-curve cryptography and the discrete logarithm problem live inside GF(p) and GF(p^k).
• Error-correcting codes — Reed-Solomon and BCH codes (used in CDs, QR codes, DVB-T, voyager space probes) are built from polynomials over GF(2⁸) or GF(2^m).
• Combinatorial designs — finite fields construct Hadamard matrices, projective planes, and Latin squares used in statistical experiments.
• Computer algebra — factorisation and modular reduction algorithms (Berlekamp, Cantor-Zassenhaus) are formulated over finite fields.
• Number theory pedagogy — Z_n, primitive roots, and quadratic residues are the gateway to modular arithmetic, RSA, and Diffie-Hellman.

Frequently Asked Questions

When is Z_n a field?

The modular ring Z_n is a field if and only if n is prime. In that case every non-zero element is a unit because gcd(a, n) = 1 for every 0 < a < n. When n is composite, Z_n has zero divisors and is only a ring, not a domain.

What is GF(p^k)?

GF(p^k), also called the Galois field of order p^k, is the unique finite field with p^k elements. Its elements are represented as polynomials of degree less than k over GF(p), with arithmetic performed modulo an irreducible polynomial f(x) of degree k. For each prime p and positive integer k there is exactly one such field up to isomorphism.

What is an irreducible polynomial and why is it needed?

An irreducible polynomial over GF(p) is a polynomial that cannot be factored into lower-degree polynomials with coefficients in GF(p). Reducing modulo an irreducible polynomial of degree k gives a quotient ring that is a field. Without irreducibility the quotient has zero divisors and is not a field.

What is a zero divisor?

A non-zero element a in a ring is a zero divisor if there exists a non-zero element b with a · b = 0. In Z_n the zero divisors are exactly the elements a with gcd(a, n) greater than 1. Fields have no zero divisors, which is why Z_n is a field precisely when n is prime.

What is the multiplicative order of an element?

The multiplicative order of a unit a is the smallest positive integer k such that a^k equals 1 in the ring. By Lagrange's theorem this order divides the size of the multiplicative group: φ(n) for Z_n, or p^k − 1 for GF(p^k). An element whose order equals the full group size is called a primitive root or generator.

What does a primitive element of GF(p^k) do?

A primitive element is a generator of the multiplicative group GF(p^k)*, which is cyclic of order p^k − 1. Every non-zero element of the field can be written as a power of the primitive element, which makes discrete logarithm, BCH codes, and Reed-Solomon error correction possible.
