Surface of Revolution Calculator
Explore a rotated curve with MiniWebtool’s Surface of Revolution Calculator. Supply f(x), bounds, and a rotation axis to estimate the resulting surface area, with formula steps and a three-dimensional visualization.
For Gemini, paste the copied question into the chat. You can also copy it below.Need help using this tool? Ask AI
View the question
Enter f(x), the bounds and the axis of rotation to get the surface area with the steps and a 3D view.
About Surface of Revolution Calculator
The Surface of Revolution Calculator computes the surface area of a 3D solid generated by rotating a 2D curve around an axis. This is a fundamental concept in integral calculus with applications in engineering, physics, and design. Simply enter your function, set the integration bounds and axis of rotation, and get a step-by-step solution with an interactive 3D visualization.
At a Glance
Surface of Revolution Calculator estimates the surface area made by rotating the curve y = f(x) between two bounds around the x-axis, the y-axis or a custom axis. It shows the steps and a 3D wireframe.
| Feature | What you get | Good for |
|---|---|---|
| Curve and bounds | Type f(x), such as x^2, sqrt(x) or sin(x), and set the lower bound a and upper bound b. | Calculus problems on rotated curves |
| Choice of axis | Rotate around the x-axis, the y-axis, or a custom axis y = k, which uses the radius |f(x) - k|. | Curves offset from the standard axes |
| Formula | Uses S = 2*pi times the integral of r(x) ds, where ds = sqrt(1 + [f'(x)]^2) dx. | Seeing how arc length enters surface area |
| Quick examples | One-click examples: sphere, cone, paraboloid, sin(x) and x^2 about the y-axis. | Trying the tool on known surfaces |
| Views | Switch between a 2D profile and a 3D wireframe, with an animate option. A comparison of both rotation axes is shown. | Visualizing the solid being built |
| Step-by-step | Shows the formula steps for the calculation. | Students showing their working |
Understanding Surface of Revolution

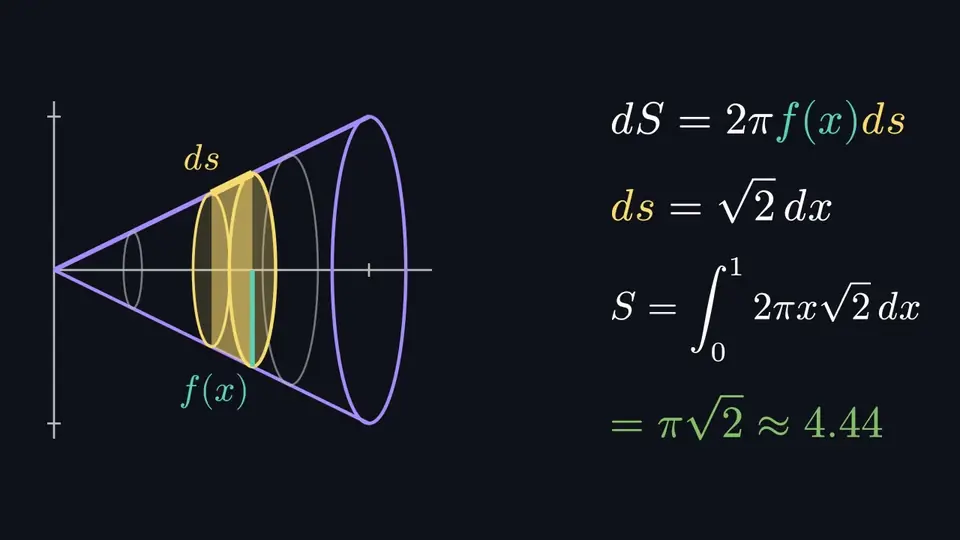

When a curve \( y = f(x) \) is rotated around an axis, it traces out a surface in three-dimensional space. The surface area of this solid is computed using a definite integral that accounts for both the radius of rotation and the arc length of the curve.
The Surface Area Formula Explained
The general formula for the surface area of revolution is:
$$S = 2\pi \int_a^b r(x) \, ds$$
where \( r(x) \) is the distance from the curve to the axis of rotation, and \( ds = \sqrt{1 + [f'(x)]^2} \, dx \) is the arc length differential. The \( 2\pi r(x) \) factor represents the circumference of the circle traced by each point on the curve, while \( ds \) ensures we measure along the actual curve surface, not just a flat projection.
Key Differences: Surface Area vs Volume of Revolution
| Property | Surface Area | Volume |
|---|---|---|
| What it measures | Outer skin/shell area | Interior space |
| Key factor | Arc length: \( \sqrt{1+[f'(x)]^2} \) | None (simpler integrand) |
| x-axis formula | \( 2\pi\int|f(x)|\sqrt{1+[f']^2}\,dx \) | \( \pi\int[f(x)]^2\,dx \) |
| Difficulty | Often harder analytically | Usually easier |
| Paint analogy | Amount of paint needed | Amount of water to fill |
Common Surfaces of Revolution
| Surface | Generating Curve | Surface Area |
|---|---|---|
| Sphere (radius r) | \( f(x) = \sqrt{r^2 - x^2} \), [−r, r] | \( 4\pi r^2 \) |
| Cone (radius r, height h) | \( f(x) = \frac{r}{h}x \), [0, h] | \( \pi r\sqrt{r^2+h^2} \) |
| Cylinder (radius r, height h) | \( f(x) = r \), [0, h] | \( 2\pi rh \) |
| Paraboloid (about the y-axis) | \( f(x) = x^2 \), [0, a] | \( \frac{\pi}{6}[(1+4a^2)^{3/2}-1] \) |
| Gabriel's Horn | \( f(x) = 1/x \), [1, ∞) | Infinite! (finite volume) |
How to Use the Surface of Revolution Calculator
- Enter your function — Type any function of x using standard notation:
x^2,sqrt(x),sin(x),exp(x),ln(x), or combinations thereof. - Set integration bounds — Enter the lower bound (a) and upper bound (b) for the interval. The curve from x = a to x = b will be rotated.
- Choose the axis of rotation — Select x-axis, y-axis, or a custom axis. The axis determines the radius used in the integral.
- Calculate and review — Click Calculate to see the surface area with step-by-step MathJax formulas, a 3D wireframe visualization, and a comparison between both rotation axes.
Practical Applications
Surface area of revolution calculations are essential in:
- Engineering: Determining material needed for pressure vessels, tanks, rocket nosecones, and turbine blades.
- Manufacturing: Calculating sheet metal or coating quantities for rotationally symmetric parts like bottles, bowls, and lamp shades.
- Architecture: Designing domes, cooling towers, and other rotational structures.
- Physics: Computing heat transfer surfaces, drag calculations, and antenna dish areas.
- Medical devices: Designing implants, stents, and catheters with precise surface areas.
Frequently Asked Questions
What is a surface of revolution?
A surface of revolution is a 3D surface created by rotating a 2D curve around a fixed axis. Common examples include spheres (rotating a semicircle), cones (rotating a line), and tori (rotating a circle offset from the axis). The surface area is calculated using integral calculus.
What is the formula for the surface area of revolution around the x-axis?
When rotating \( f(x) \) around the x-axis from \( a \) to \( b \), the surface area is \( S = 2\pi \int_a^b |f(x)| \sqrt{1 + [f'(x)]^2} \, dx \). The \( \sqrt{1 + [f'(x)]^2} \) factor is the arc length element \( ds \), which accounts for the slope of the curve.
What is the difference between surface area and volume of revolution?
Volume of revolution measures the space inside a solid created by rotation, while surface area measures the outer skin. Volume uses the disk/washer/shell method with simpler integrands, while surface area requires the arc length factor \( \sqrt{1 + [f'(x)]^2} \), making it generally harder to compute analytically.
When should I rotate around the y-axis instead of the x-axis?
Rotate around the y-axis when you want a surface that wraps around a vertical axis, like a vase or bowl shape. The formula becomes \( S = 2\pi \int_a^b |x| \sqrt{1 + [f'(x)]^2} \, dx \). The choice of axis changes the radius of rotation from \( f(x) \) to \( x \).
What functions does this surface of revolution calculator support?
This calculator supports polynomials like x^2 and x^3, trigonometric functions (sin, cos, tan), exponential and logarithmic functions (exp, ln, log), square root (sqrt), absolute value (abs), and combinations with standard arithmetic operators. Use x as the variable.
What is Gabriel's Horn and why is it special?
Gabriel's Horn is the surface formed by rotating \( f(x) = 1/x \) for \( x \geq 1 \) around the x-axis. It has the paradoxical property of having a finite volume (\( \pi \)) but an infinite surface area. This means you could fill it with paint, but never paint its outside — a famous result in mathematics known as the Painter's Paradox.
