Newton's Method Calculator

Find roots of equations using the Newton-Raphson method. Enter any function f(x), set an initial guess, and see step-by-step iterations with tangent line approximations, convergence analysis, and an interactive graph showing the iteration path to the root.

Embed Newton's Method Calculator Widget

About Newton's Method Calculator

The Newton's Method Calculator (Newton-Raphson Calculator) finds roots of equations by applying the Newton-Raphson iterative formula. Enter any function $f(x)$, set an initial guess $x_0$, and watch the step-by-step convergence with animated tangent line approximations. The calculator automatically computes $f'(x)$ numerically, so you only need to enter $f(x)$.

What Is Newton's Method?

Newton's method (also called the Newton-Raphson method) is a powerful iterative algorithm for finding roots of equations — values of $x$ where $f(x) = 0$. Starting from an initial guess $x_0$, each iteration refines the estimate using the formula:

$$x_{n+1} = x_n - \frac{f(x_n)}{f'(x_n)}$$

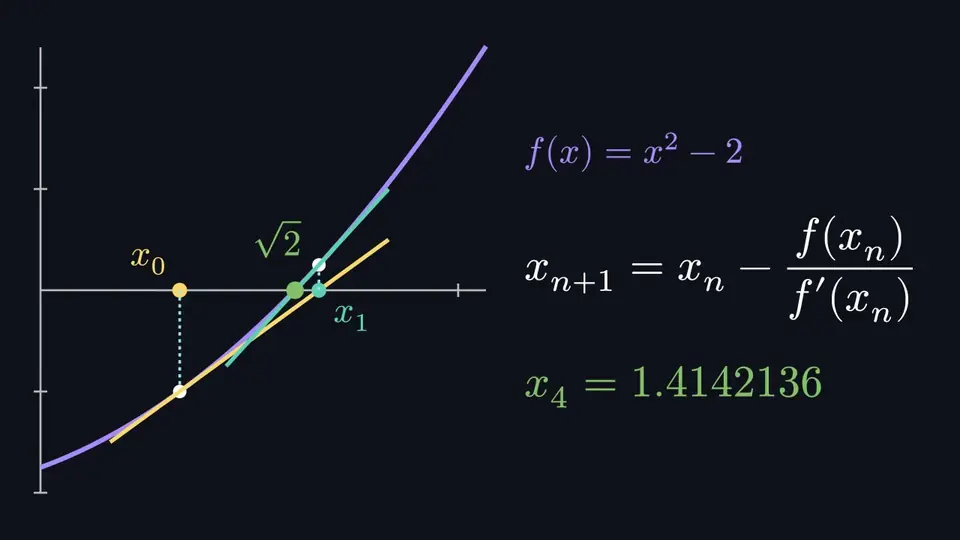

Geometrically, each step draws a tangent line to the curve at the current point $(x_n, f(x_n))$ and follows it down to the x-axis, where it crosses at $x_{n+1}$. This new x-intercept becomes the next approximation.

How Does Newton's Method Work?

📐

Tangent Line

At each x_n, draw the tangent to f(x). Its x-intercept is the next guess.

🎯

Quadratic Convergence

Correct digits roughly double each iteration for simple roots.

⚡

Fast Convergence

Typically finds roots in 5-10 iterations to machine precision.

⚠

Sensitivity

Poor initial guess or flat derivative can cause divergence.

Convergence Properties

Property	Description	Implication
Order of Convergence	Quadratic (order 2) for simple roots	Error roughly squares each step: 10⁻² → 10⁻⁴ → 10⁻⁸
Simple Roots	f(r) = 0, f'(r) ≠ 0	Fastest convergence, quadratic rate
Multiple Roots	f(r) = 0, f'(r) = 0	Convergence drops to linear
Basin of Attraction	Set of initial guesses that converge	Complex for oscillatory or multi-root functions

Newton's Method vs Other Root-Finding Methods

Method	Convergence	Requires	Pros/Cons
Newton-Raphson	Quadratic	f(x), f'(x), initial guess	Very fast but may diverge
Bisection	Linear	f(x), bracket [a,b]	Always converges but slow
Secant Method	Superlinear (≈1.618)	f(x), two initial points	No derivative needed
Fixed-Point	Linear	g(x) = x form	Simple but often slow

Real-World Applications

Field	Application	Example
Engineering	Nonlinear circuit analysis	Finding operating point of a diode circuit
Finance	Internal Rate of Return (IRR)	Solving NPV(r) = 0 for discount rate
Physics	Orbital mechanics	Solving Kepler's equation M = E − e·sin(E)
Computer Graphics	Ray-surface intersection	Finding where a ray hits an implicit surface
Machine Learning	Optimization	Finding zeros of the gradient ∇f = 0
Chemistry	Equilibrium calculations	Solving equilibrium constant expressions

How to Use the Newton's Method Calculator

Enter the function: Type your function f(x) using standard notation. Use ^ for exponents (e.g., x^3-2x-5), and function names like sin(x), ln(x), sqrt(x). Implicit multiplication is supported (e.g., 2x).
Set the initial guess: Enter x₀ near where you expect the root. A closer guess leads to faster convergence. You can use constants like pi and e.
Adjust settings (optional): Set the maximum number of iterations (default 20) and convergence tolerance (default 1e-10).
Click Find Root: The calculator runs Newton-Raphson iterations, automatically computing the derivative numerically.
Review the results: See the root, animated convergence graph with tangent lines, iteration table, and complete step-by-step solution with MathJax formulas.

Supported Functions

Category	Functions	Example
Polynomials	x, x^2, x^3, ...	x^3 - 2x - 5
Trigonometric	sin, cos, tan	cos(x) - x
Inverse Trig	asin, acos, atan	atan(x) - 0.5
Hyperbolic	sinh, cosh, tanh	tanh(x) - 0.8
Exponential	exp, e^x	exp(x) - 3x
Logarithmic	ln, log, log10, log2	ln(x) - 1
Roots	sqrt, cbrt	sqrt(x) - 2
Other	abs, floor, ceil	abs(x) - 3
Constants	pi, e	sin(pi*x)

When Does Newton's Method Fail?

Newton's method can fail or diverge in several situations:

Zero derivative: If $f'(x_n) = 0$, the tangent line is horizontal and has no x-intercept.
Cycling: The iterations may oscillate between two or more values without converging.
Divergence: The iterates may move further and further from the root with a poor initial guess.
Overshoot: For functions with inflection points near the root, iterations may jump past the root repeatedly.

In such cases, try a different initial guess, use a bracketing method like bisection first to narrow the range, or apply a damped Newton step.

FAQ

What is Newton's method (Newton-Raphson method)?

Newton's method is an iterative root-finding algorithm that uses tangent line approximations. Starting from an initial guess x₀, it repeatedly applies the formula x_(n+1) = x_n - f(x_n)/f'(x_n) to converge toward a root where f(x) = 0. It typically converges quadratically for simple roots, meaning the number of correct digits roughly doubles each iteration.

How do I choose a good initial guess for Newton's method?

Choose an initial guess close to where you expect the root. You can graph the function first or use the intermediate value theorem: if f(a) and f(b) have opposite signs, a root lies between a and b. Avoid starting where f'(x) is zero or near zero, as this causes the method to fail or diverge.

When does Newton's method fail to converge?

Newton's method can fail when the derivative f'(x) is zero or near zero at an iteration point, when the initial guess is too far from the root, when the function has inflection points near the root, or when the method enters a cycle. In these cases, try a different initial guess or use a bracketing method like bisection.

What is the convergence rate of Newton's method?

Newton's method has quadratic convergence for simple roots, meaning the number of correct digits roughly doubles each iteration. For repeated roots (where f'(r) = 0), convergence slows to linear. The quadratic convergence makes it one of the fastest root-finding methods when it converges.

Does this calculator compute the derivative automatically?

Yes. This calculator uses central difference numerical differentiation to compute f'(x) automatically. You only need to enter f(x) and the initial guess. The derivative is approximated as [f(x+h) - f(x-h)] / (2h) with a small step size for high accuracy.
