Area of a Trapezoid Calculator

Calculate the area of a trapezoid instantly with our interactive calculator. Features a dynamic visual diagram, step-by-step formula breakdown, and support for various unit systems.

Free to useNo sign-up requiredUpdated Jan 2026

Area of a Trapezoid CalculatorTry it now — free ▼

Interactive Trapezoid Diagram

Quick Examples

Standard (8, 12, 5) Small (5, 10, 4) Large (15, 25, 8) Equal Bases

Base a Shorter parallel side (top)

Base b Longer parallel side (bottom)

Height h Perpendicular distance

Unit of Measurement

Decimal Precision

Embed Area of a Trapezoid Calculator Widget

About Area of a Trapezoid Calculator

Welcome to our Area of a Trapezoid Calculator, a powerful and intuitive tool designed to help you calculate the area of any trapezoid instantly. Whether you are a student learning geometry, a teacher preparing lessons, an engineer working on designs, or simply curious about shapes, this calculator provides accurate results with detailed step-by-step explanations and an interactive visual diagram.

What is a Trapezoid?

A trapezoid (known as a trapezium in British English) is a quadrilateral with exactly one pair of parallel sides. The parallel sides are called the bases, while the non-parallel sides are called the legs. This unique shape appears frequently in architecture, engineering, and everyday objects.

Types of Trapezoids

Isosceles Trapezoid

Has equal-length legs and equal base angles. The diagonals are also equal in length.

Right Trapezoid

Has two adjacent right angles. One leg is perpendicular to both bases.

Scalene Trapezoid

Has no equal sides or angles other than the parallel bases.

Area of a Trapezoid Formula

The area of a trapezoid is calculated using a simple yet elegant formula that relates the two parallel sides and the height:

Trapezoid Area Formula

$$A = \frac{(a + b) \times h}{2}$$

Where:

A = Area of the trapezoid
a = Length of the shorter parallel side (top base)
b = Length of the longer parallel side (bottom base)
h = Perpendicular height (distance between the parallel sides)

Why Does This Formula Work?

The trapezoid area formula can be understood in several ways:

Average rectangle method: The formula calculates the area as if the trapezoid were a rectangle with width equal to the average of the two bases: (a + b) / 2.
Triangle decomposition: A trapezoid can be divided into a rectangle and two triangles, and the formula combines their areas.

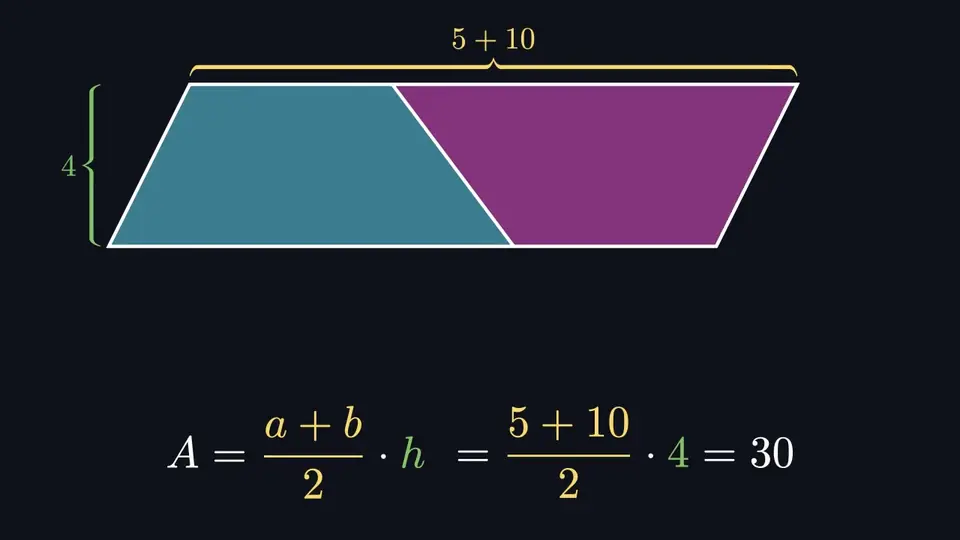

Doubling method: Two identical trapezoids can be joined to form a parallelogram with base (a + b) and height h. The parallelogram's area is (a + b) × h, so one trapezoid is half that.

How to Use This Calculator

Enter Base a: Input the length of the shorter parallel side (the top base of the trapezoid).
Enter Base b: Input the length of the longer parallel side (the bottom base of the trapezoid).
Enter Height h: Input the perpendicular distance between the two parallel sides. Note: This is NOT the length of the slanted sides.
Select Unit: Choose your measurement unit (metric or imperial) for accurate area output.
Set Precision: Select the number of decimal places for your result (0-10).
Click Calculate: Get your result along with step-by-step calculations and additional measurements.

Understanding the Results

Our calculator provides comprehensive results including:

Area: The main result in square units
Midsegment: The average of the two bases, which represents the line connecting the midpoints of the legs
Estimated Perimeter: Calculated assuming an isosceles trapezoid
Step-by-step breakdown: See exactly how the calculation is performed

Related Formulas

Finding the Height

If you know the area and both bases, you can find the height:

Height from Area

$$h = \frac{2A}{a + b}$$

Midsegment (Median)

The midsegment connects the midpoints of the two legs and is parallel to both bases:

Midsegment Formula

$$m = \frac{a + b}{2}$$

Trapezoid vs Other Quadrilaterals

Shape	Parallel Sides	Area Formula
Trapezoid	Exactly 1 pair	(a + b) × h / 2
Parallelogram	2 pairs	base × height
Rectangle	2 pairs (right angles)	length × width
Square	2 pairs (all equal)	side²

Real-World Applications

Architecture: Roof sections, window frames, and decorative elements often have trapezoidal shapes
Civil Engineering: Cross-sections of channels, dams, and retaining walls
Land Surveying: Calculating irregular plot areas that can be approximated as trapezoids
Manufacturing: Sheet metal work, packaging design, and material estimation
Education: Teaching geometry concepts and spatial reasoning

Frequently Asked Questions

What is the formula for the area of a trapezoid?

The area of a trapezoid is calculated using the formula A = (a + b) × h / 2, where 'a' and 'b' are the lengths of the two parallel sides (bases), and 'h' is the perpendicular height (the distance between the parallel sides). This formula works because a trapezoid can be thought of as the average of two rectangles.

What is a trapezoid?

A trapezoid (called a trapezium in British English) is a quadrilateral with exactly one pair of parallel sides. The parallel sides are called bases, and the non-parallel sides are called legs. Special types include isosceles trapezoids (equal legs) and right trapezoids (one leg perpendicular to the bases).

How do you find the height of a trapezoid?

If you know the area and both bases, you can find the height using h = 2A / (a + b). If you have an isosceles trapezoid and know the leg length, you can use the Pythagorean theorem: h = sqrt(leg² - ((b-a)/2)²), where 'a' is the shorter base and 'b' is the longer base.

What is the midsegment of a trapezoid?

The midsegment (also called the median) of a trapezoid is the line segment connecting the midpoints of the two legs. Its length equals the average of the two bases: midsegment = (a + b) / 2. The midsegment is always parallel to both bases.

What is the difference between a trapezoid and a parallelogram?

A trapezoid has exactly one pair of parallel sides, while a parallelogram has two pairs of parallel sides. A parallelogram is a special case where both pairs of opposite sides are parallel and equal in length. The area formula for a parallelogram is simply A = base × height.
