Curvature Calculator

Welcome to the Curvature Calculator, a powerful calculus tool that computes the curvature (κ) of a curve at any given point. Whether you have an explicit function y = f(x) or a parametric curve defined by x(t) and y(t), this calculator provides exact symbolic results, step-by-step derivative computations, the radius of curvature, and a visualization showing the osculating circle — the circle that best approximates the curve at your chosen point.

What is Curvature?

Curvature (κ) measures how sharply a curve bends at a particular point. Intuitively, it quantifies the rate at which the direction of the tangent line changes as you move along the curve. A straight line has zero curvature everywhere, while a tight turn has high curvature.

Curvature Formulas

For an Explicit Function y = f(x)

Where:

• f'(x) = first derivative (slope of the tangent line)
• f''(x) = second derivative (rate of change of the slope)

For a Parametric Curve x(t), y(t)

Where primes denote derivatives with respect to the parameter t.

Radius of Curvature

The radius of curvature R is the reciprocal of curvature. It equals the radius of the osculating circle — the unique circle that best approximates the curve at a given point.

How to Use This Calculator

1. Choose curve type: Select "y = f(x)" for explicit functions or "x(t), y(t)" for parametric curves.
2. Enter the function: Type your expression using standard math notation. Use ** for exponents, sin, cos, exp, log, sqrt, pi, etc.
3. Specify the point: Enter the x-value (or t-value for parametric) where you want to compute curvature.
4. Click Calculate: View the curvature κ, radius of curvature R, step-by-step computation, and the osculating circle visualization.

Understanding the Results

• Curvature (κ): The main result — how sharply the curve bends at the point. Always non-negative.
• Radius of Curvature (R): The radius of the osculating circle. R = 1/κ. Larger R means gentler bending.
• Osculating Circle: The green dashed circle in the plot that best approximates the curve locally. Its center lies on the concave side of the curve.
• Step-by-step Calculation: Complete derivative computation showing how κ is obtained.

Common Curvature Values

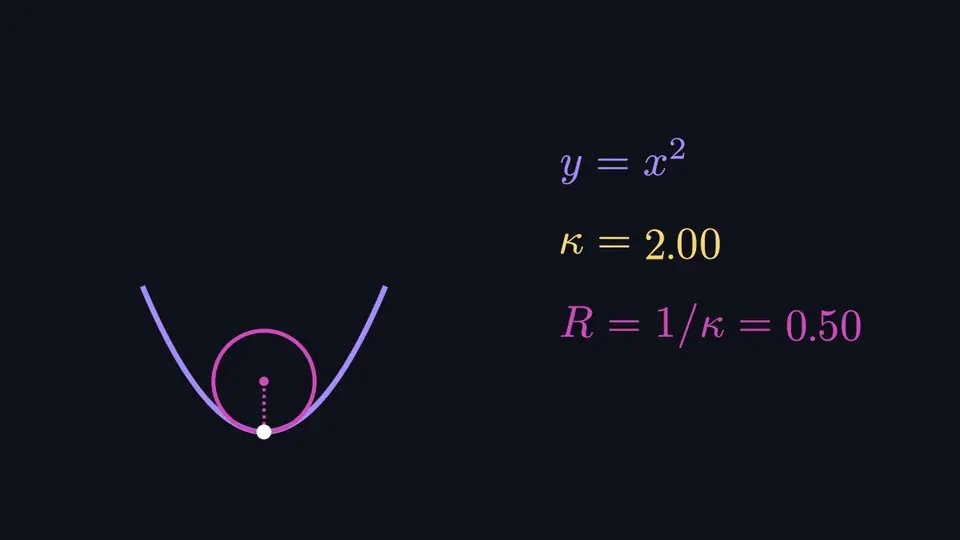

The Osculating Circle

The osculating circle (from Latin osculare, "to kiss") at a point P on a curve is the circle that:

• Passes through P
• Has the same tangent direction as the curve at P
• Has the same curvature as the curve at P

It is the best circular approximation to the curve near that point. The center of the osculating circle is called the center of curvature, and it always lies on the concave side of the curve, along the unit normal vector.

Applications of Curvature

Road and Railway Design

Engineers use curvature to design roads and railway tracks. Maximum curvature determines the minimum turning radius, which affects safe driving speed. Transition curves (clothoids) provide a smooth transition between straight sections and curved sections by linearly changing curvature.

Computer Graphics and CAD

In computer-aided design, curvature continuity (G2 continuity) ensures surfaces look smooth. Curvature combs visualize how curvature varies along a curve, helping designers create aesthetically pleasing shapes for cars, aircraft, and consumer products.

Optics and Lens Design

The curvature of lens surfaces determines their focal length and optical properties. The lensmaker's equation directly relates surface curvatures to the power of a lens.

Physics: Particle Motion

In physics, curvature relates to centripetal acceleration. A particle moving along a curved path with speed v experiences centripetal acceleration a = κv², which is perpendicular to the velocity direction.

Differential Geometry

Curvature is a fundamental concept in differential geometry. For surfaces, Gaussian curvature (product of principal curvatures) determines whether a surface is locally spherical, saddle-shaped, or flat. This extends to general relativity, where spacetime curvature describes gravity.

Input Notation Guide

Frequently Asked Questions

What is curvature in calculus?

Curvature (κ) is a measure of how sharply a curve bends at a given point. A straight line has zero curvature, while a circle of radius r has constant curvature κ = 1/r. For a function y=f(x), the formula is κ = |f''(x)| / (1 + (f'(x))²)^(3/2).

How do you calculate the curvature of a parametric curve?

For a parametric curve defined by x(t) and y(t), the curvature formula is κ = |x'y'' - y'x''| / ((x')² + (y')²)^(3/2). This requires computing the first and second derivatives of both x(t) and y(t) with respect to parameter t.

What is the osculating circle?

The osculating circle at a point on a curve is the circle that best approximates the curve at that point. Its radius equals the radius of curvature R = 1/κ, and its center lies on the normal line to the curve at that point, on the concave side.

What is the radius of curvature?

The radius of curvature R is the reciprocal of curvature: R = 1/κ. It represents the radius of the osculating circle. A large radius means the curve bends gently (nearly straight), while a small radius means the curve bends sharply.

What does zero curvature mean?

Zero curvature at a point means the curve is locally a straight line — there is no bending. The second derivative f''(x) equals zero at that point (for explicit curves). The radius of curvature is infinite, meaning the osculating circle degenerates into a straight line.

Can curvature be negative?

In the standard scalar curvature formula, curvature κ is always non-negative because of the absolute value in the numerator. However, signed curvature (without the absolute value) can be positive or negative, indicating whether the curve bends to the left or right. This calculator computes unsigned (non-negative) curvature.
