Polygon Diagonals Calculator
Count connections between nonadjacent vertices using MiniWebtool’s Polygon Diagonals Calculator. Enter the side count to find diagonals and the interior-angle sum, plus the individual interior angle when the polygon is regular.
For Gemini, paste the copied question into the chat. You can also copy it below.Need help using this tool? Ask AI
View the question
Enter the number of sides below to get the number of diagonals, the interior-angle sum and each interior angle, with the steps.
About Polygon Diagonals Calculator
What Is a Polygon Diagonal?
A diagonal of a polygon is a line segment that connects two non-adjacent vertices. In other words, it is a line drawn inside the polygon from one corner to another that is not a side of the polygon. A triangle (3 sides) has no diagonals, while a quadrilateral (4 sides) has exactly 2.
At a Glance
Polygon Diagonals Calculator counts the diagonals of a polygon from its number of sides, using D = n(n − 3) / 2. It also gives the sum of the interior angles and the interior angle of a regular polygon.
| Feature | What you get | Good for |
|---|---|---|
| Side count | Enter any whole number of sides from 3 to 1,000. | Triangles through very large polygons |
| Number of diagonals | Uses D = n(n − 3) / 2, so a hexagon has 9 diagonals and a 1,000-sided polygon has 498,500. | Geometry problems asking how many diagonals a shape has |
| Interior angle sum | Calculates (n − 2) × 180°, such as 540° for a pentagon. | Finding the total of the angles in any polygon |
| Regular polygon angle | Each interior angle of a regular polygon is (n − 2) × 180° / n. | Regular shapes in design or geometry homework |
| Diagram | An animated polygon shows the vertices, sides and every diagonal as they are counted. | Seeing why the formula divides by 2 |
| Steps and properties | A step-by-step breakdown with formulas, plus a properties table for the polygon. | Checking your working |
How to Calculate the Number of Diagonals
The number of diagonals in a polygon with n sides is given by the formula:
Why does this formula work?
- Each vertex can connect to \(n - 3\) other vertices via diagonals (excluding itself and its 2 adjacent vertices).
- There are \(n\) vertices, giving \(n(n-3)\) connections.
- Each diagonal is counted twice (once from each end), so we divide by 2.
Sum of Interior Angles
The sum of all interior angles of an n-sided polygon is:
This comes from the fact that any polygon can be divided into \(n - 2\) triangles by drawing diagonals from one vertex, and each triangle has interior angles summing to 180°.
Each Interior Angle of a Regular Polygon
If all sides and angles are equal (a regular polygon), each interior angle is:
Common Polygon Diagonals Reference
| Polygon | Sides | Diagonals | Sum of Angles |
|---|---|---|---|
| Triangle | 3 | 0 | 180° |
| Quadrilateral | 4 | 2 | 360° |
| Pentagon | 5 | 5 | 540° |
| Hexagon | 6 | 9 | 720° |
| Heptagon | 7 | 14 | 900° |
| Octagon | 8 | 20 | 1,080° |
| Nonagon | 9 | 27 | 1,260° |
| Decagon | 10 | 35 | 1,440° |
| Dodecagon | 12 | 54 | 1,800° |
| Icosagon | 20 | 170 | 3,240° |
How to Use This Calculator
- Enter the number of sides (n) of your polygon, from 3 to 1,000.
- Click Calculate Diagonals to see the results.
- View the interactive polygon diagram showing vertices, sides, and all diagonals.
- Read the step-by-step calculation breakdown with formulas.
- Explore the properties table for detailed polygon measurements.
Real-World Applications
- Architecture: Understanding diagonal bracing in polygon-shaped structures for structural integrity.
- Computer Graphics: Polygon triangulation (dividing polygons into triangles) relies on diagonals.
- Network Design: Calculating the number of direct connections in a polygon-topology network.
- Game Development: Collision detection and mesh generation use polygon diagonal decomposition.
- Mathematics Education: Teaching combinatorics and geometric reasoning.
Frequently Asked Questions
What is the formula for the number of diagonals in a polygon?
The formula is \(D = \frac{n(n-3)}{2}\), where \(n\) is the number of sides. This works because each vertex connects to \(n-3\) non-adjacent vertices, and dividing by 2 avoids double-counting.

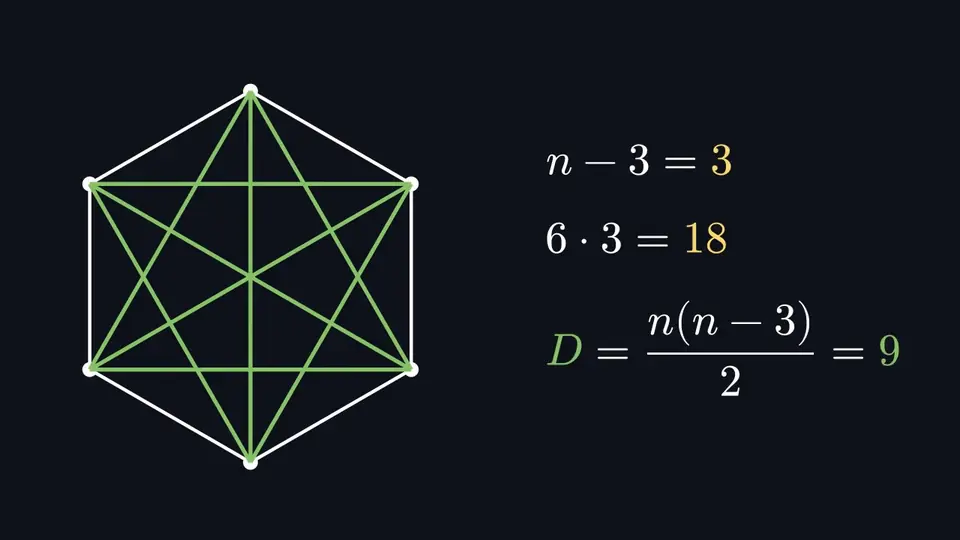

How many diagonals does a hexagon have?
A hexagon (6 sides) has \(\frac{6(6-3)}{2} = \frac{6 \times 3}{2} = 9\) diagonals.
Does a triangle have any diagonals?
No. A triangle has 0 diagonals because every vertex is adjacent to every other vertex — there are no non-adjacent vertex pairs to connect.
What is the sum of interior angles of a polygon?
The sum is \((n-2) \times 180°\). For example, a pentagon (5 sides) has \((5-2) \times 180° = 540°\).
What polygon has the most diagonals?
There is no maximum — the number of diagonals grows quadratically. A 100-gon has 4,850 diagonals, while a 1,000-gon has 498,500 diagonals.
